DC / DC ISOLATED
SEARCH
SERIESOUTPUT POWERINPUT VOLTAGE(V)OUTPUT VOLTAGE(V)REGULATEDPACKAGEDATA

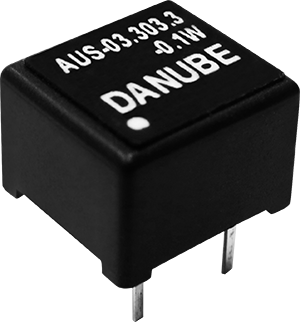

AUAU0.1W3.3, 5, 123.3, 5DIL 6
NU-C1NNU-C1N1W3.3, 5, 12, 243.3, 5, 9, 12, 15, 24SMD

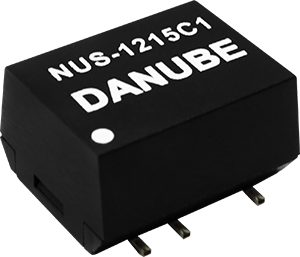

NU-C1NU-C11W5, 12, 243.3, 5, 9, 12, 15SMD

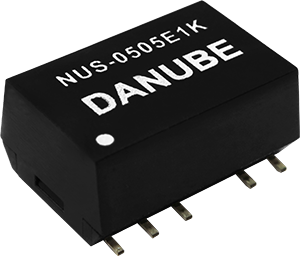

NU-E1KNU-E1K1W5, 12, 243.3, 5, 9, 12, 15, ±5, ±9, ±12, ±15SMD

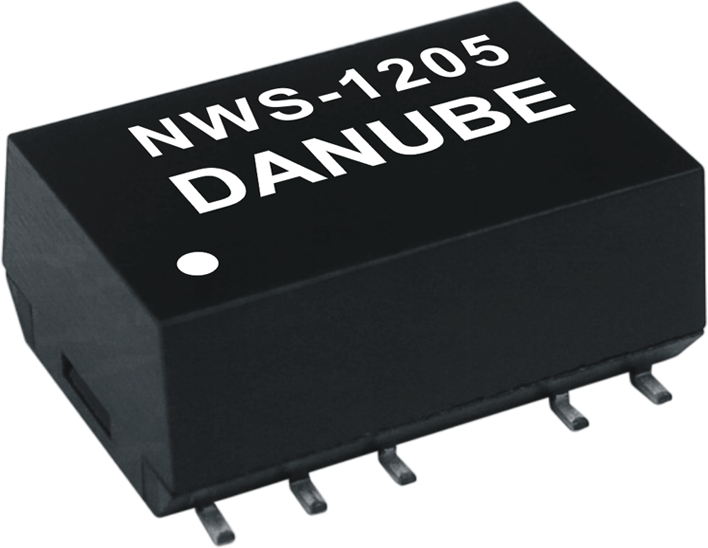

NWNW1W9-18, 18-36, 36-725, 12, 15SMD

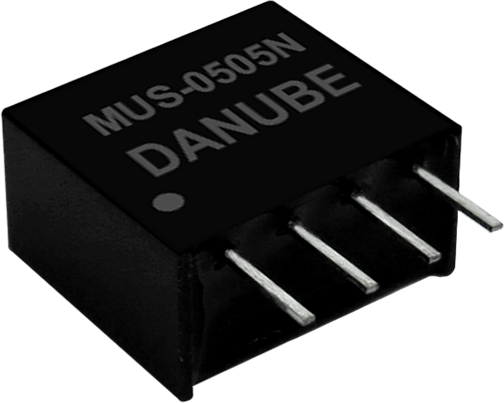

MU-NMU-N1W5, 12, 243.3, 5, 9, 12, 15, 24SIP 4

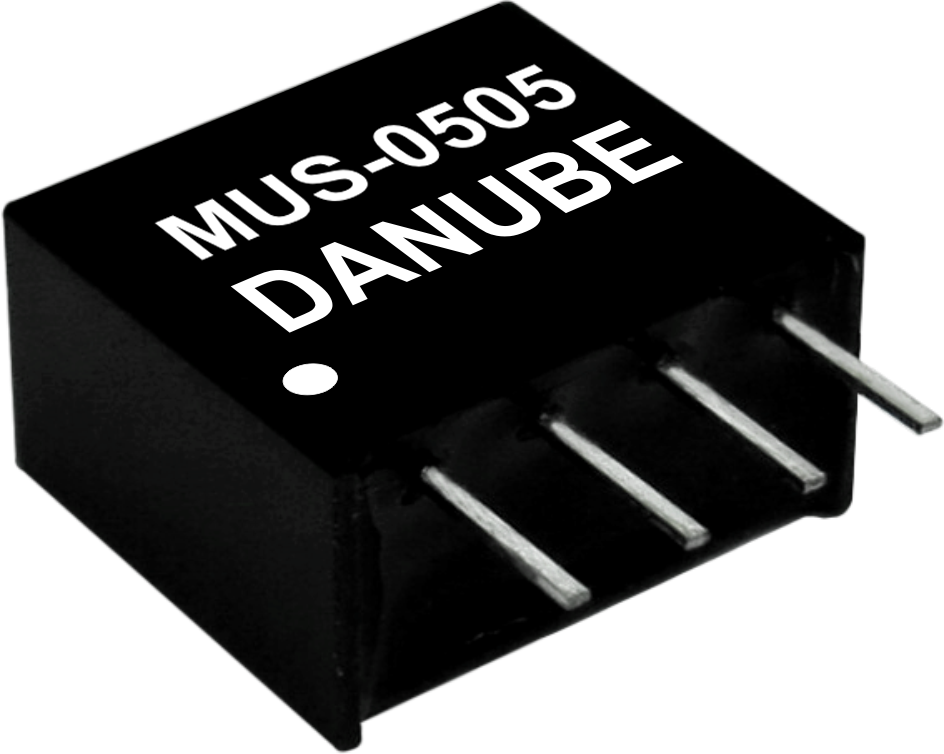

MUMU1W5, 12, 243.3, 5, 9, 12, 15SIP 4

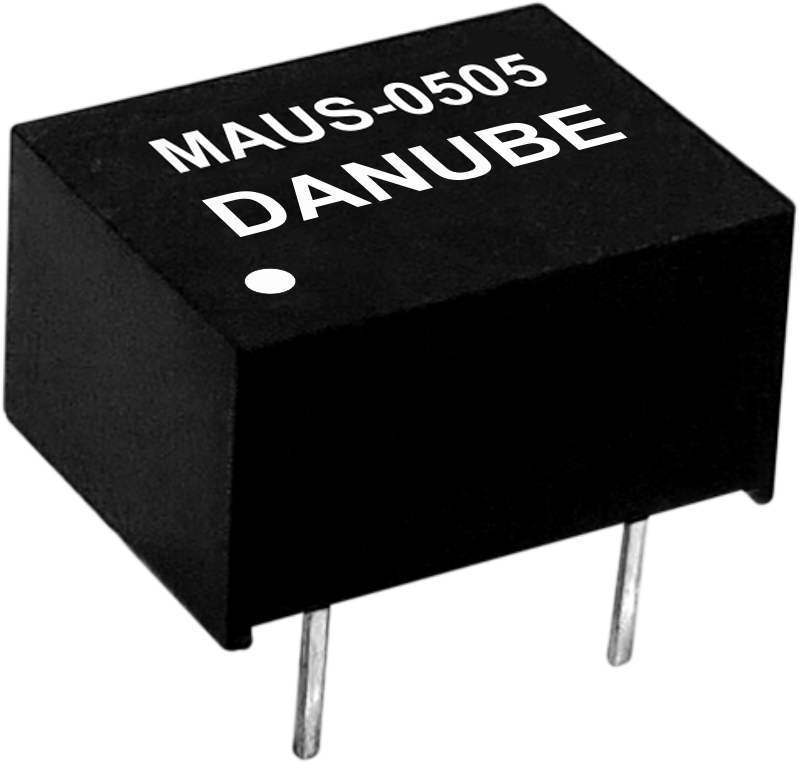

MAUMAU1W5, 12, 245, 9, 12, 15, ±5, ±12, ±15DIL 8

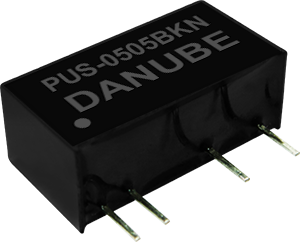

PU-NPU-N1W5, 12, 243.3, 5, 9, 12, 15, ±5, ±9, ±12, ±15SIP 7

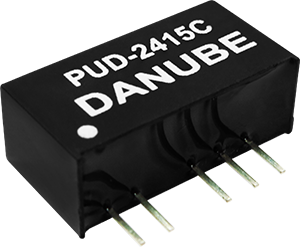

PUPU1W5, 12, 243.3, 5, 9, 12, 15, ±5, ±12, ±15SIP 7

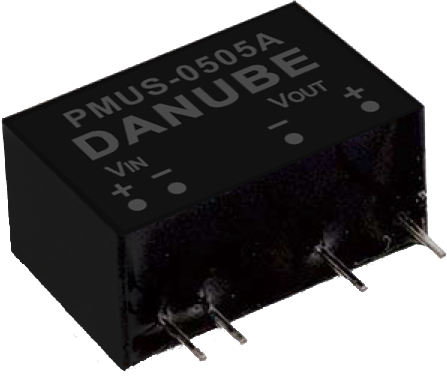

PMUPMU1W-2W5, 12, 245, 9, 12, 15, ±5, ±9, ±12, ±15SIP 7

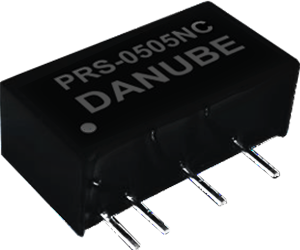

PR-NPR-N1W5, 12, 24 ,485, 12, 15, ±5, ±12, ±15SIP 7

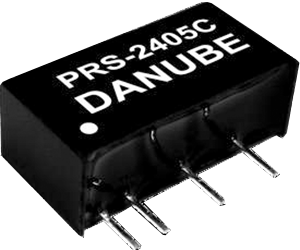

PRPR1W5, 12, 24, 485, 9, 12, 15, 24SIP 7

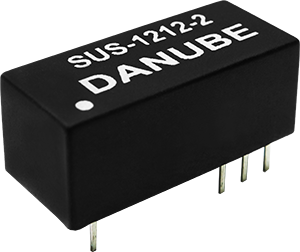

SUSU0.5W-2W5, 12, 24, 485, 9, 12, 15DIL 16

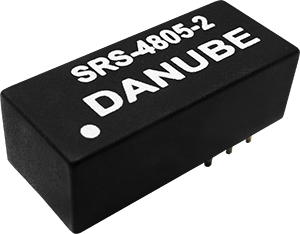

SRSR0.5W-1W5, 12, 24, 485, 9, 12, 15DIL 16
PW-E1PW-E11W9-753.3, 5, 9, 12, 15, 24 , ±5, ±12, ±15SIP 6

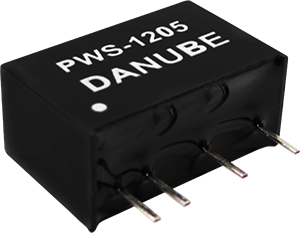

PWPW1W9-18, 18-36, 36-75, 9-36, 18-723.3, 5, 12, 15SIP 6

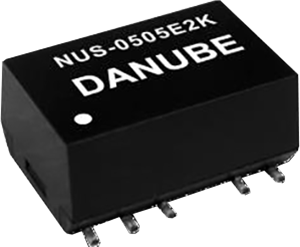

NU-E2KNU-E2K2W5, 12, 245, 12, 15, ±5, ±12, ±15SMD

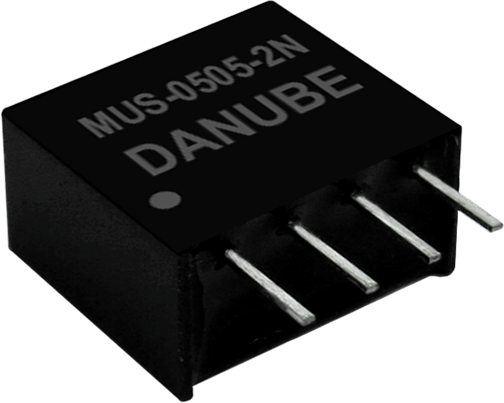

MU-2NMU-2N2W5, 12, 243.3, 5, 9, 12, 15, 24SIP 4

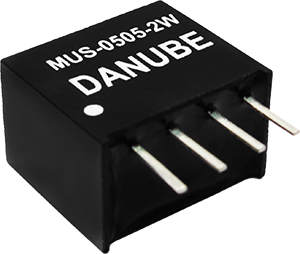

MU-2WMU-2W2W5, 12, 245, 12, 15SIP 4
PW-E2PW-E22W9-753.3, 5, 9, 12, 15, 24 , ±5, ±12, ±15SIP 6

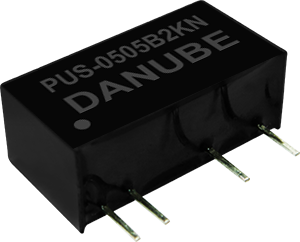

PU-2NPU-2N2W5, 12, 243.3, 5, 9, 12, 15, ±5, ±9, ±12, ±15SIP 7

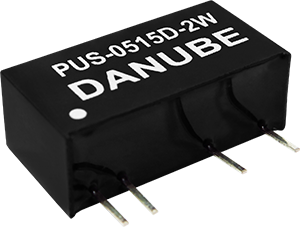

PU-2WPU-2W2W5, 12, 243.3, 5, 9, 12, 15, ±5, ±12, ±15SIP 7

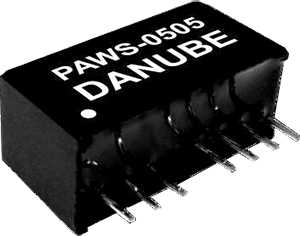

PAWPAW2W4.5-9, 9-18, 18-36, 36-75, 9-36, 18-755, 12, 15, 24, ±5, ±12, ±15SIP 8

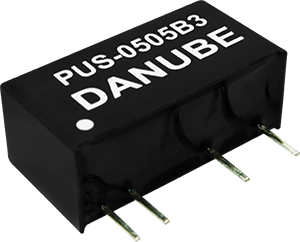

PU-3PU-33W5, 12, 243.3, 5, 9, 12, 15, ±5, ±9, ±12, ±15SIP 7

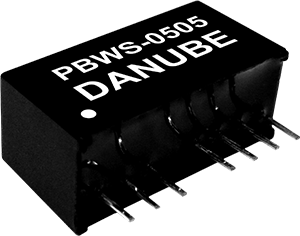

PBWPBW3W4.5-9, 9-18, 18-36, 36-75, 9-36, 18-755, 12, 15, ±5, ±12, ±15SIP 8

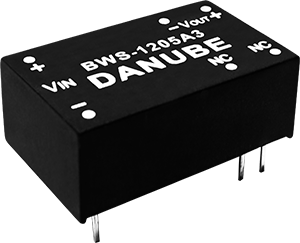

BWBW3W9-18, 18-36, 18-75, 9-36, 36-753.3, 5, 12, 15, 24, ±5, ±12, ±15DIL 16

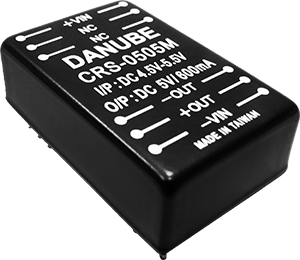

CRCR3W5, 12, 24, 485, 9, 12, 15, 24, ±5, ±12, ±15DIL 24
CW-3-6WCW3W-6W4.5-9, 9-18, 18-36, 36-72, 9-36, 18-723.3, 5, 9, 12, 15, 24, ±5, ±12, ±15DIL 24 / SMD

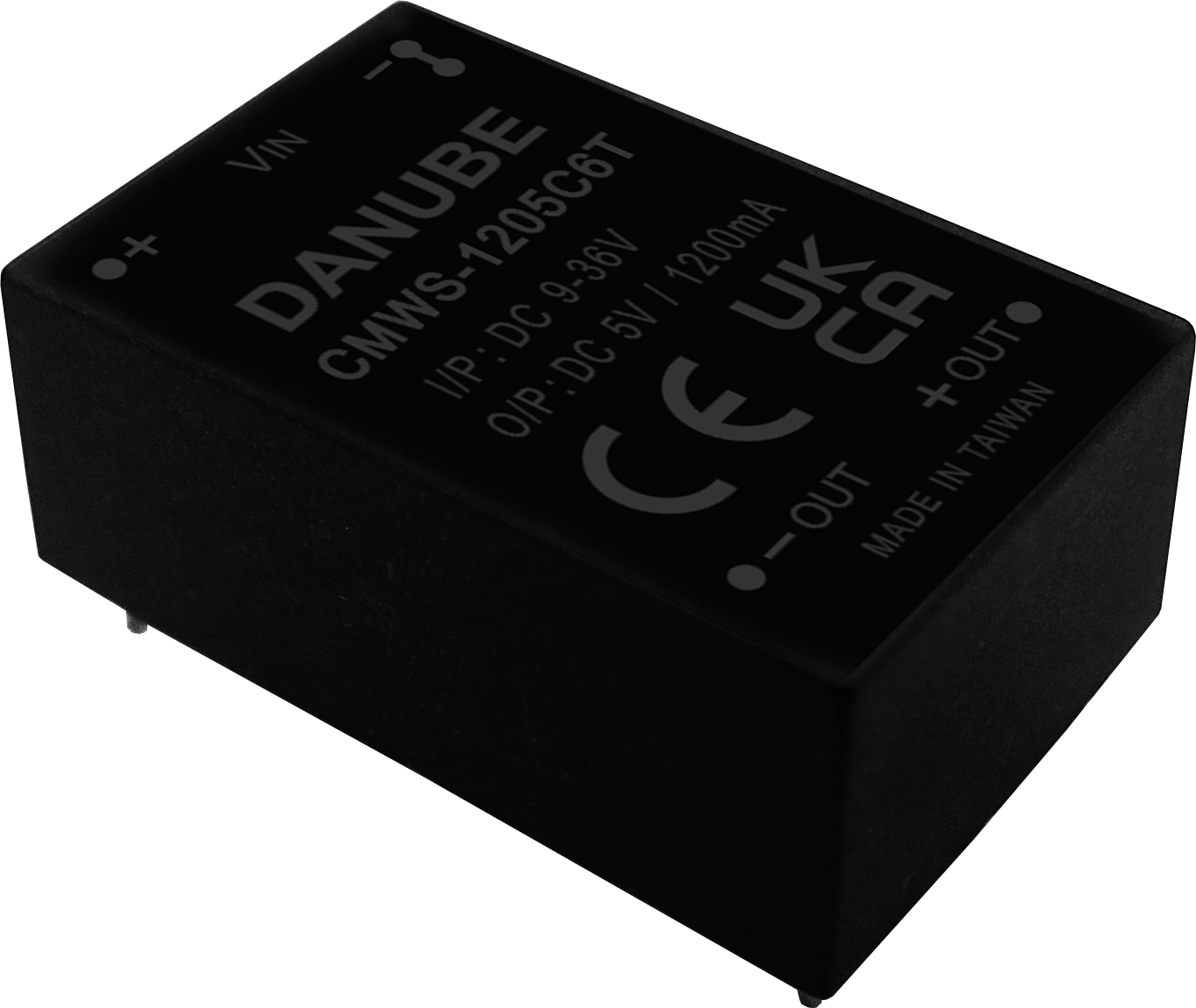

CMWCMW3W-6W9-36, 18-755, 12, 15, ±5, ±12, ±15DIL 24

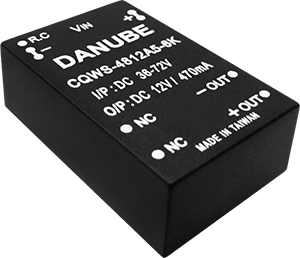

CQW-6KCQW-6K3W-5W4.5-9, 9-18, 18-36, 36-725, 12, 15, ±5, ±12, ±15DIL 24

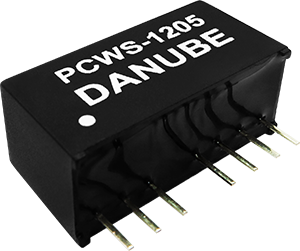

PCWPCW5W9-18, 18-36, 36-753.3, 5, 12, 15, ±5, ±12, ±15SIP 8

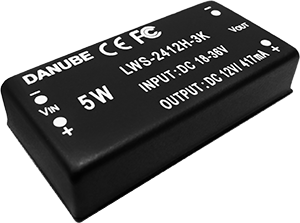

LWLW5W9-18, 18-36, 36-72, 9-36, 18-725, 9, 12, 15, ±5, ±12, ±15DIL 2" * 1"

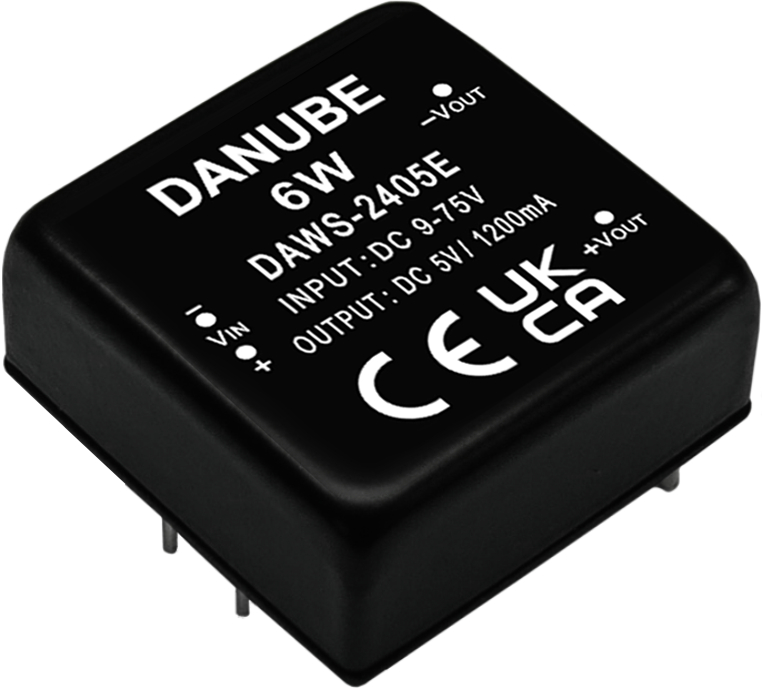

DAWDAW6W9-36, 18-75, 9-753.3, 5, 9, 12, 15, 24, ±5, ±12, ±15DIL 1" * 1"
CW-6EW CW-6ECW-6E6W9-753.3, 5, 9, 12, 15, ±5, ±12, ±15DIL 24 / WIRED
PDW-EPDW-E9W9-753.3, 5, 9, 12, 15, 24, ±5, ±12, ±15SIP 8

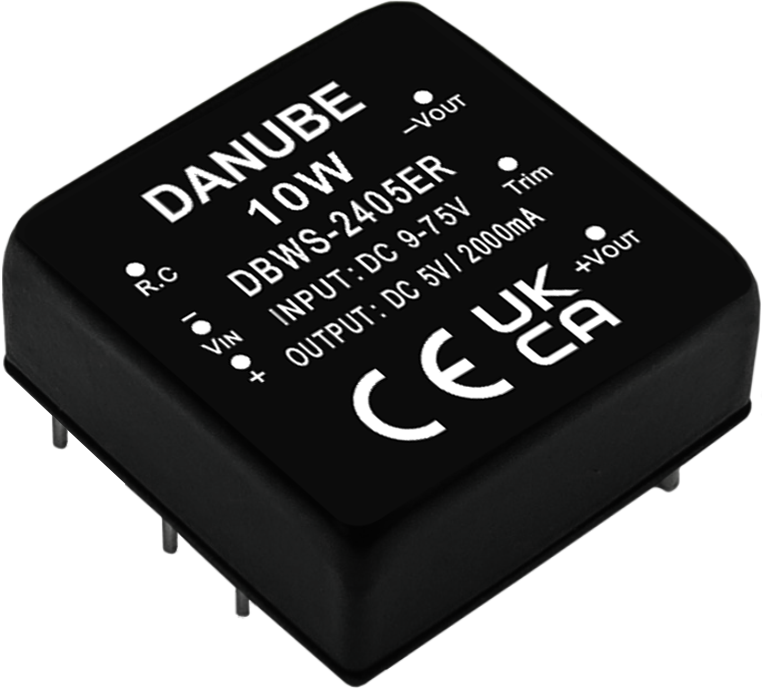

DBWDBW10W9-753.3, 5, 9, 12, 15, 24, ±5, ±12, ±15DIL 1" * 1"

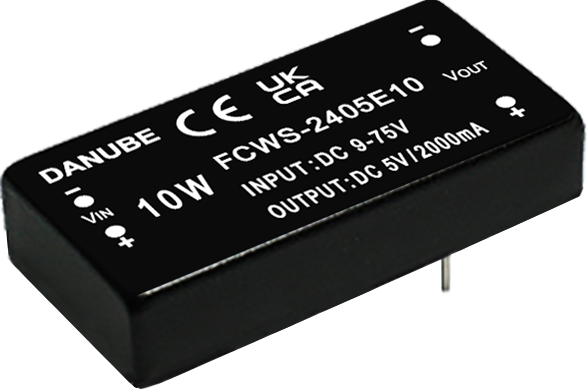

FCW-E10FCW-E1010W9-753.3, 5, 9, 12, 15, 24, ±5, ±12, ±15DIL 2" * 1"

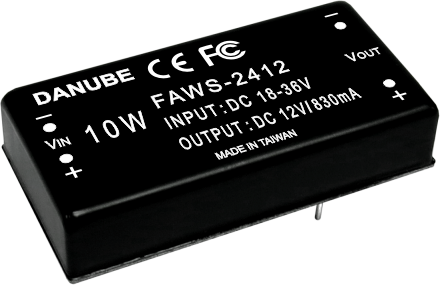

FAWFAW10W9-18, 18-36, 36-72, 9-36, 18-723.3, 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15 ±24DIL 2" * 1"

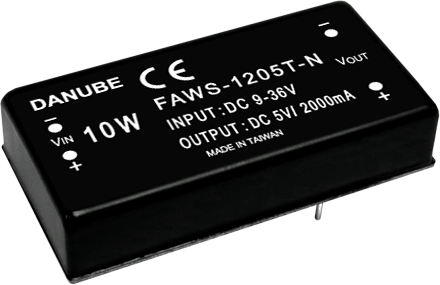

FAW-NFAW-N10W9-18, 18-36, 36-75, 9-36, 18-755, 12, 15, ±5, ±12, ±15DIL 2" * 1"

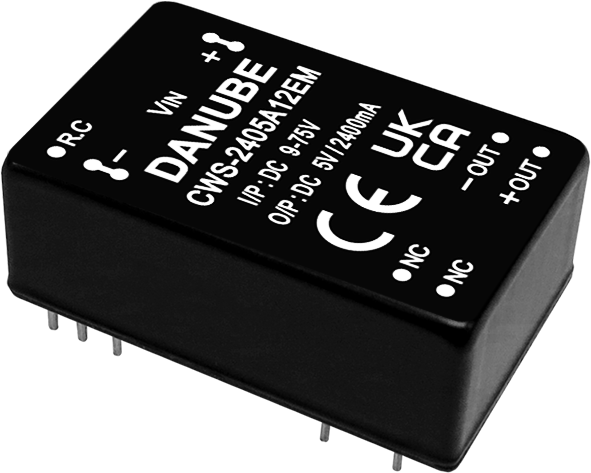

CW-12ECW-12E12W9-753.3, 5, 9, 12, 15, ±5, ±12, ±15DIL 24

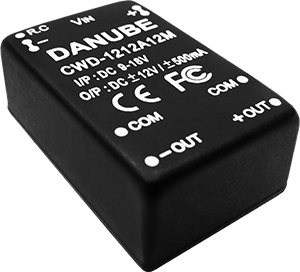

CW-12WCW12W9-18, 18-36, 36-753.3, 5, 12, 15, ±5, ±12, ±15DIL 24

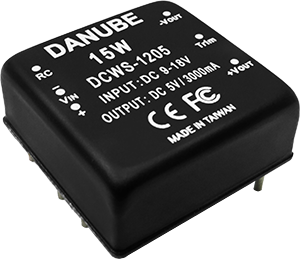

DCWDCW15W9-18, 18-36, 36-753.3, 5, 12, 15DIL 1" * 1"

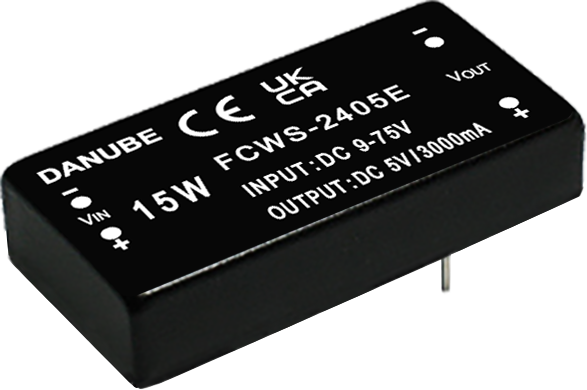

FCW-EFCW-E15W9-753.3, 5, 9, 12, 15, 24, ±5, ±12, ±15DIL 2" * 1"

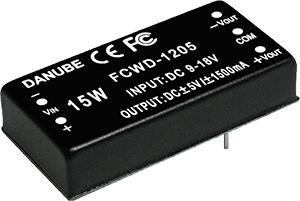

FCWFCW15W9-18, 18-36, 36-72, 9-36, 18-725, 12, 15, ±5, ±12, ±15DIL 2" * 1"

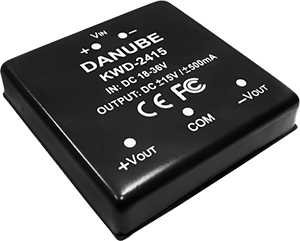

KWKW15W9-18, 18-36, 36-72, 9-36, 18-723.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 ±24DIL 2" * 2"

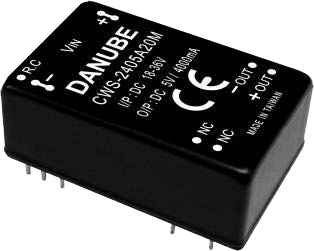

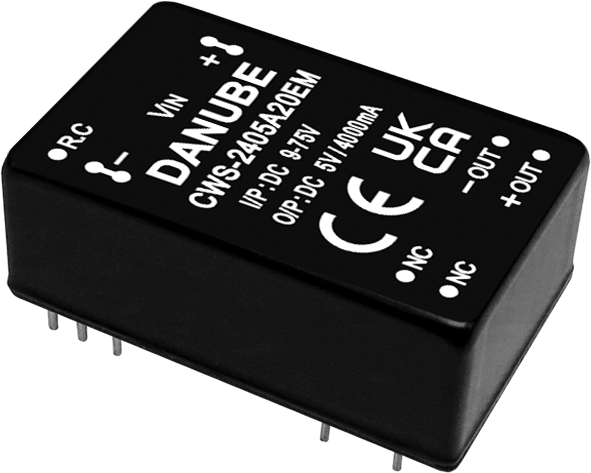

CW-A20MCW-A20M20W9-18, 18-36, 36-755, 12, 15DIL 24

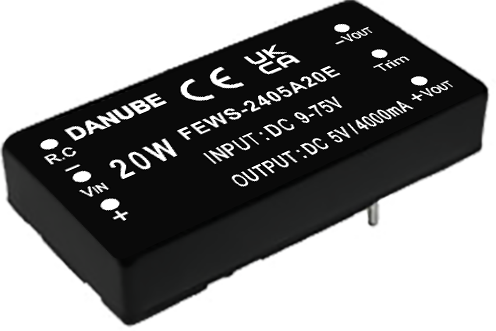

FEW-A20FEW-A2020W9-18, 18-36, 36-75, 9-36, 18-753.3. 5, 12, 15, ±5, ±12, ±15DIL 2" * 1"

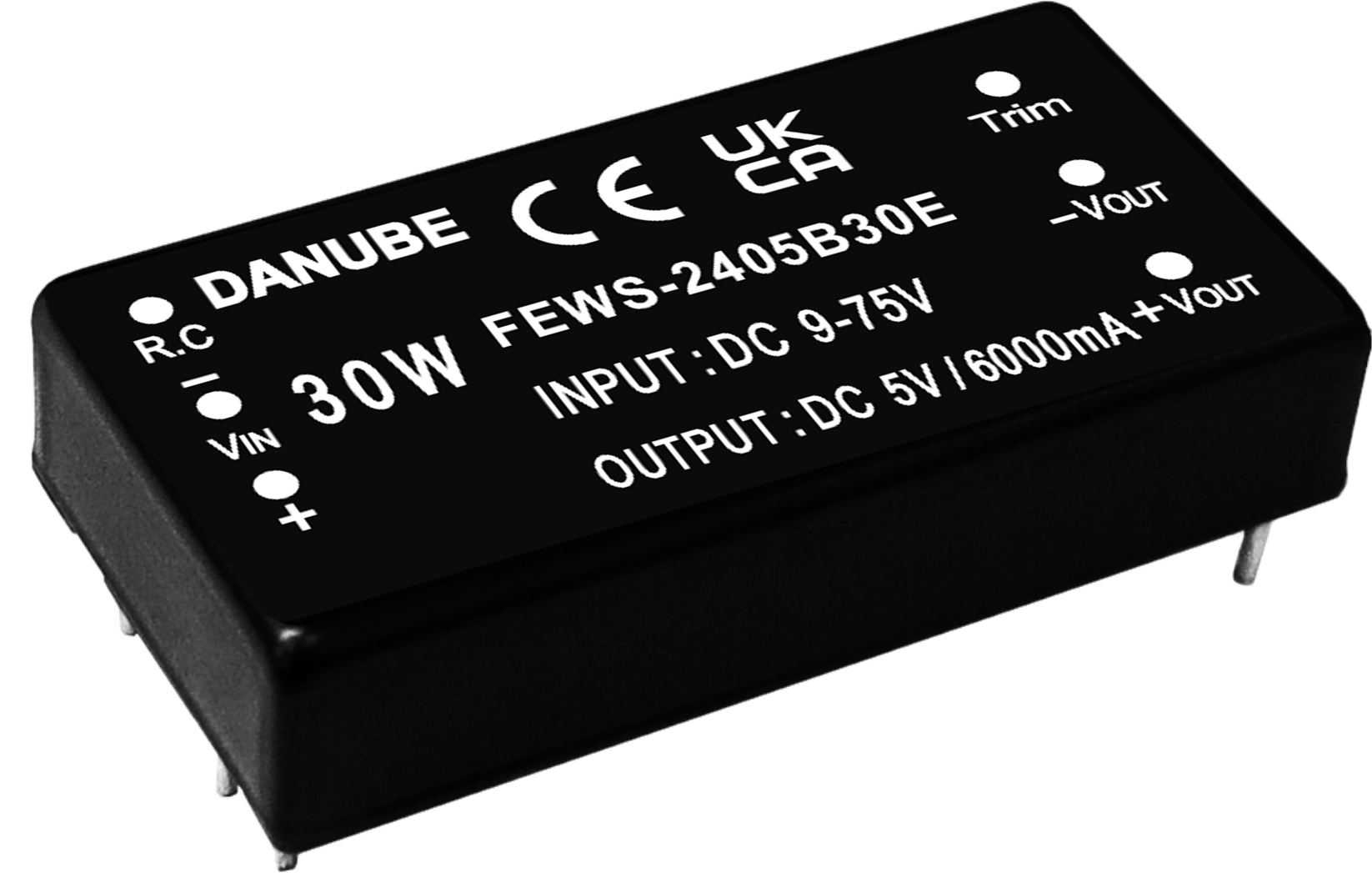

FEW-B30FEW-B3030W9-18, 18-36, 36-753.3. 5, 12, 15DIL 2" * 1"

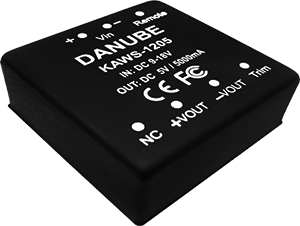

KAWKAW30W9-18, 18-36, 36-72, 9-36, 18-723.3, 5, 9, 12, 15, 24, 30, ±5, ±12, ±15, ±24DIL 2" * 2"

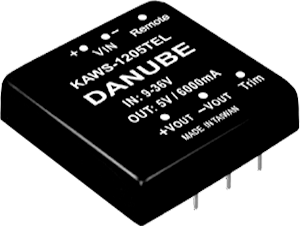

KAW-ELKAW-EL30W9-18, 18-36, 36-72, 9-36, 18-723.3, 5, 9, 12, 15, 24, ±5, ±12, ±15DIL 2" * 2"

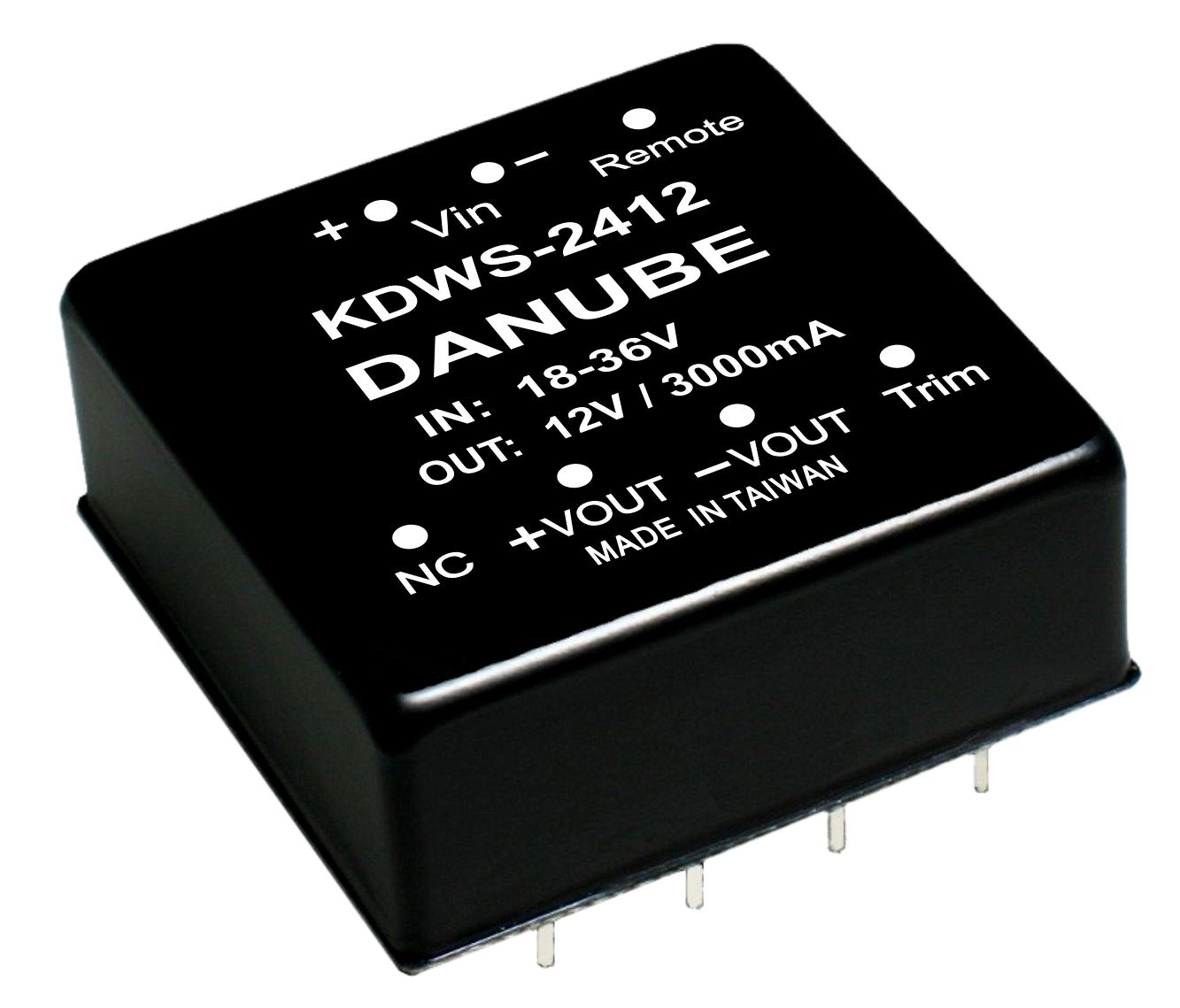

KDWKDW30W-40W9-18, 18-36, 36-7212, 15, 24, ±12, ±15DIL 2" * 2"

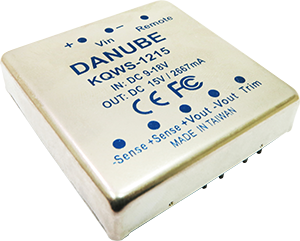

KQWKQW40W9-18, 18-36, 36-75, 9-36, 18-753.3, 5, 9, 12, 15DIL 2" * 2"

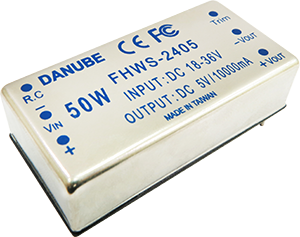

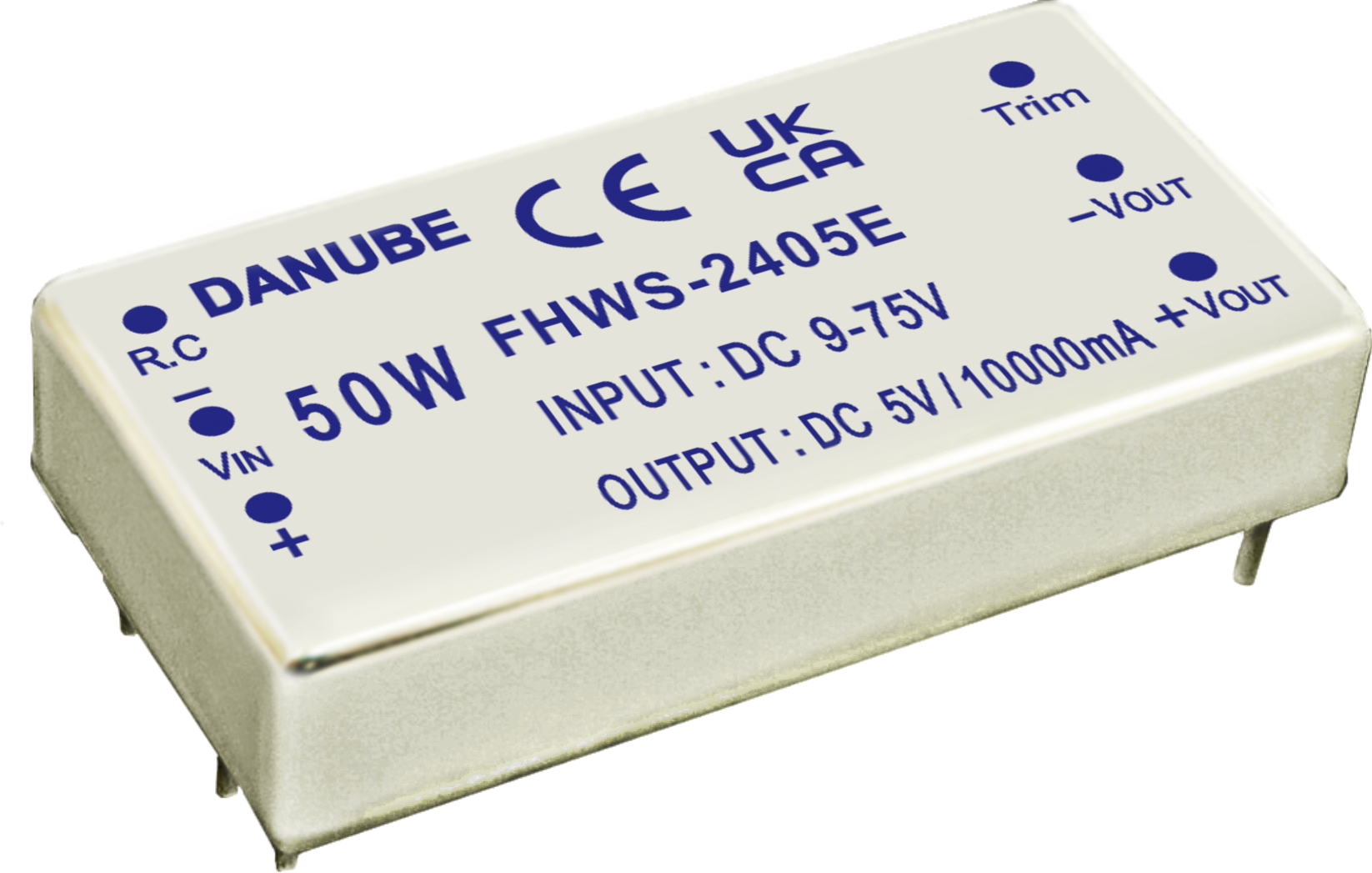

FHWFHW50W18-36, 36-755, 12, 15DIL 2" * 1"

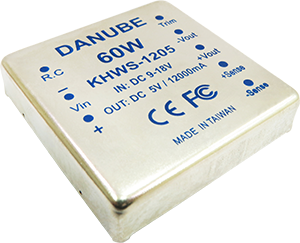

KHWSKHWS40W-80W9-18, 18-36, 36-753.3, 5, 12, 15DIL 2" * 2"

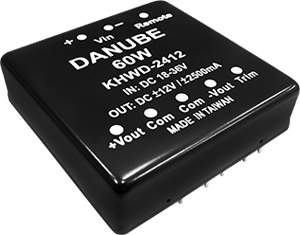

KHWDKHWD60W18-36, 36-75±12, ±15DIL 2" * 2"

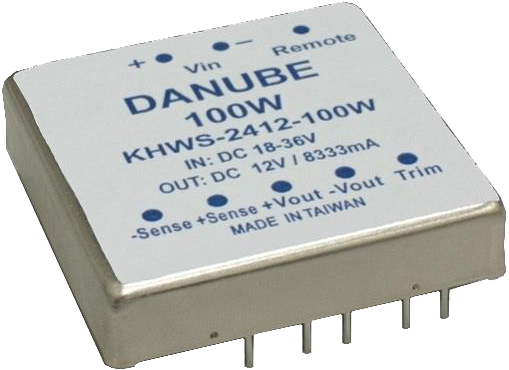

KHW-100WKHW-100W100W18-36, 36-755, 12, 15DIL 2" * 2"
